<< D >> Front Camshaft Bearing Cap Removal
WARNING: This page is about a different variant/trim than selected.

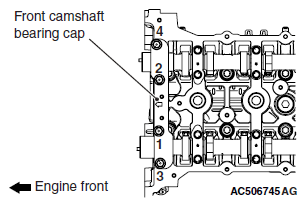

Loosen the front camshaft bearing cap mounting bolts in the order of number shown in the figure, and remove the front camshaft bearing cap.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
