<< A >> Rocker Cover Assembly Removal

WARNING: This page is about a different variant/trim than selected.

Loosen the rocker cover assembly mounting bolts in the order of number shown in the figure, and remove the rocker cover assembly.

Fig 1: Rocker Cover Assembly Mounting Bolts Loosening Sequence
G05374117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

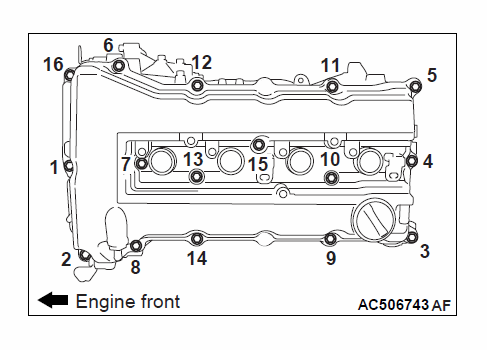

Fig 2: Rocker Cover Assembly Mounting Bolts Loosening Sequence (2016)
G00563917Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
