<< F >> Engine Assembly Supporting

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the vacuum pipe assembly (refer to WATER HOSE AND WATER PIPE ), and install the engine hanger plate (Special tool: MB992201), then tighten the bolts to the specified torque.
Tightening torque: 11± 1 N.m (97 ± 9 in-lb)
< When engine hanger (special tool MB991928) is used >
1. Assemble the engine hanger (special tool MB991928). (Set following parts to the base hanger.)
  - Slide bracket (HI)
  - Foot x 4 (standard) (MB991932)
  - Joint x 2 (90) (MB991930)

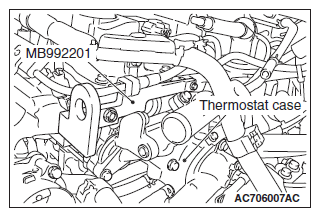

    Fig 1: Installing Engine Hanger Plate Using Special Tool MB992201
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set the feet of the special tool as shown in the illustration.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

  Fig 2: Locating Engine Hanger Balance Bracket
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Set the chain to the engine hanger plate (Special tool: MB992201) to support the engine and transaxle assembly. Remove the garage jack, and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

  Fig 3: Installing Chain To Engine Hanger Plate Using Special Tool MB992201
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine mechanical hanger (special tool MB991895) is used >
1. Set the feet of the engine mechanical hanger (special tool MB991895) as shown in the illustration.
  NOTE: Slide the front foot of the engine mechanical hanger (Special tool: MB991895) to balance the engine hanger.

  Fig 4: Locating Engine Hanger Balance Bracket
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set the chain to the engine hanger plate (Special tool: MB992201) to support the engine and transaxle assembly. Remove the garage jack, and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

  Fig 5: Installing Chain To Engine Hanger Plate Using Special Tool MB992201
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
