LOGIC FLOW CHARTS (Monitor Sequence)

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

< Target clutch 1 (odd) pressure: 3, 000 hPa or more >

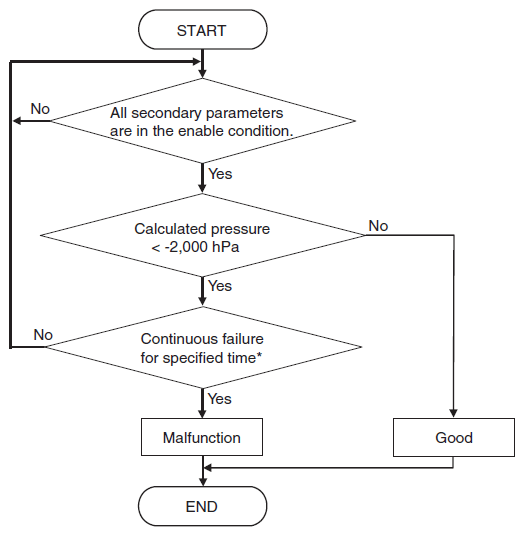

Fig 1: Monitor Sequence Logic Flow Charts (Pressure 3, 000 HPA Or More)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

*: Specified time

The specified time for the "Rationality-high" monitor depends on the transmission fluid temperature, the shift lever position.

Shift lever position	Transmission fluid temperature	Specified time
"D → N" or "R → N" or "R → P"	>= -10°C (14°F)	1, 220 msec
"D → N" or "R → N" or "R → P"	< -10°C (14°F)	2, 220 msec
"N" or "P"	All range	220 msec
"R" or "D" or manual mode	<= -10°C (14°F)	3, 220 msec
"R" or "D" or manual mode	> -10°C (14°F)	2, 220 msec

Example of the specified time

When the shift lever position is P: The specified time is always 220 msec.
When the shift lever position is "R → N":
If the transmission fluid temperature is -10°C (14°F) or more, the specified time is 1, 220 msec.

If the transmission fluid temperature is lower than -10°C (14°F), the specified time is 2, 220 msec.
When shift lever position is D:
If the transmission fluid temperature is -10°C (14°F) or less, the specified time is 3, 220 msec.

If the transmission fluid temperature is higher than -10°C (14°F), the specified time is 2, 220 msec.

< Target clutch 1 (odd) pressure: 1, 400 hPa or more to 3, 000 hPa or less >

Fig 1: Monitor Sequence Logic Flow Charts (Pressure 1, 400 HPA To 3, 000 HPA)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

*: Specified time

The specified time for the "Rationality-high" monitor depends on the transmission fluid temperature, the shift lever position.

Shift lever position	Transmission fluid temperature	Specified time
"D → N" or "R → N" or "R → P"	>= -10°C (14°F)	1, 220 msec
"D → N" or "R → N" or "R → P"	< -10°C (14°F)	2, 220 msec
"N" or "P"	All range	220 msec
"R" or "D" or manual mode	<= -10°C (14°F)	3, 220 msec
"R" or "D" or manual mode	> -10°C (14°F)	2, 220 msec

Example of the specified time

When the shift lever position is P: The specified time is always 220 msec.
When the shift lever position is "R → N":
If the transmission fluid temperature is -10°C (14°F) or more, the specified time is 1, 220 msec.

If the transmission fluid temperature is lower than -10°C (14°F), the specified time is 2, 220 msec.
When shift lever position is D:
If the transmission fluid temperature is -10°C (14°F) or less, the specified time is 3, 220 msec.

If the transmission fluid temperature is higher than -10°C (14°F), the specified time is 2, 220 msec.

< Target clutch 1 (odd) pressure: 1, 400 hPa or less >

Fig 1: Monitor Sequence Logic Flow Charts (1, 400 HPA Or Less)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

*: Specified time

The specified time for the "Rationality-high" monitor depends on the transmission fluid temperature, the shift lever position.

Shift lever position	Transmission fluid temperature	Specified time
"D → N" or "R → N" or "R → P"	>= -10°C (14°F)	1, 220 msec
"D → N" or "R → N" or "R → P"	< -10°C (14°F)	2, 220 msec
"N" or "P"	All range	220 msec
"R" or "D" or manual mode	<= -10°C (14°F)	3, 220 msec
"R" or "D" or manual mode	> -10°C (14°F)	2, 220 msec

Example of the specified time

When the shift lever position is P: The specified time is always 220 msec.
When the shift lever position is "R → N":
If the transmission fluid temperature is -10°C (14°F) or more, the specified time is 1, 220 msec.

If the transmission fluid temperature is lower than -10°C (14°F), the specified time is 2, 220 msec.
When shift lever position is D:
If the transmission fluid temperature is -10°C (14°F) or less, the specified time is 3, 220 msec.

If the transmission fluid temperature is higher than -10°C (14°F), the specified time is 2, 220 msec.
