LOGIC FLOW CHARTS (Monitor Sequence) < Rationality - low >

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

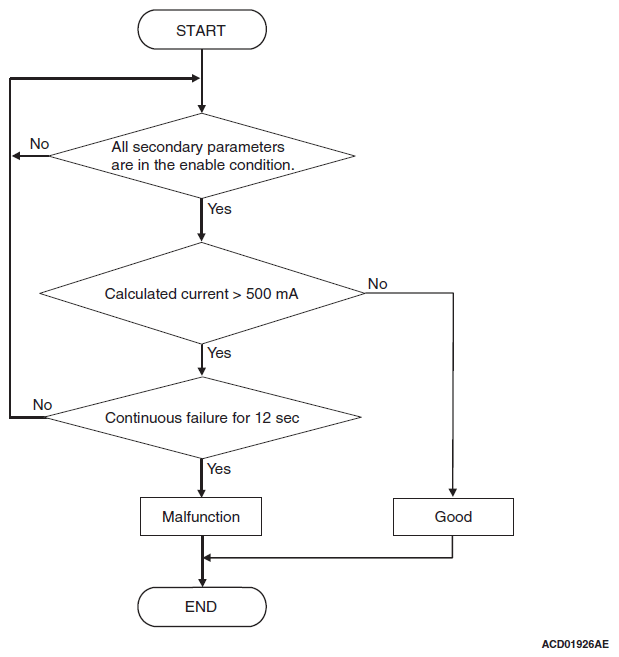

Fig 1: Monitor Sequence Logic Flow Charts (Rationality - Low)
G09625768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
