Shift Mechanism: Notes
WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

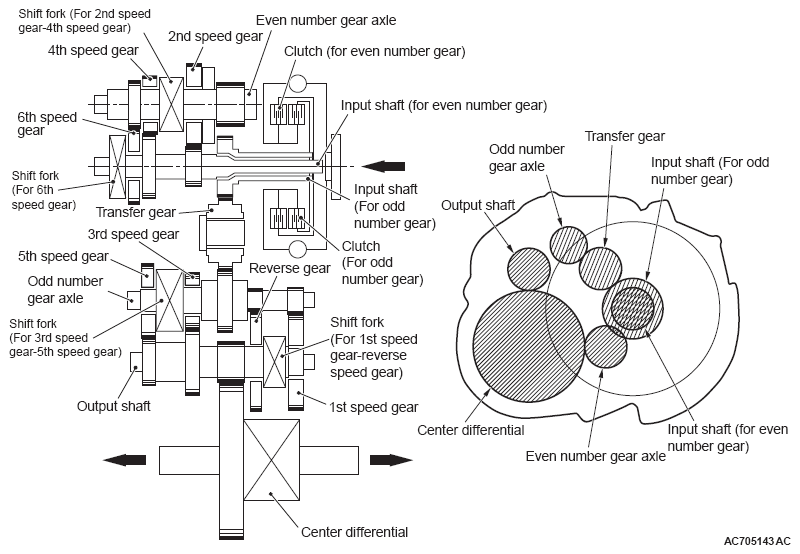

The shifting mechanism of TC-SST assembly is divided into two systems as the odd number gear axle (reverse, 1st, 3rd, 5th) and even number gear axle (2nd, 4th, 6th). Each mechanism is joined with an independent clutch, establishing a structure with which two 3-speed M/T mechanisms are combined.
