Harness Clip Installation

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Install the front wheel speed sensor to the harness clip as shown in illustration.

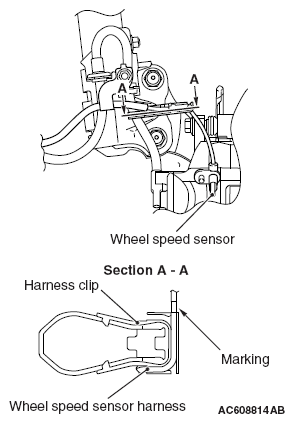

Fig 1: Identifying Front Wheel Speed Sensor Harness
G07044305Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
