Special Tools

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Tool number and name	Supersession	Application
MB990810 Side bearing puller	MB991367-01	A/C compressor rotor removal and installation
MB992623 Guide	MIT217213
MB992624 Pusher	MB990900-01
MD999566 Claw	MB991367-01
MB991367 Special spanner	MB991367-01	Armature mounting nut of compressor removal and installation
MB991386Pin	MIT217213	Armature mounting nut of compressor removal and installation
MB991658 Test harness set	Tool not available	Inspection of throttle position sensor
MB991223 MB991219 MB991220 MB991221 MB991222	Harness set Check harness LED harness LED harness adapter Probe	Continuity check and voltage measurement at harness wire or connector For checking connector pin contact pressure For checking power supply circuit For checking power supply circuit For connecting a locally sourced tester
MB992006 Extra fine probe	General service tool	Making voltage and resistance measurement during troubleshooting

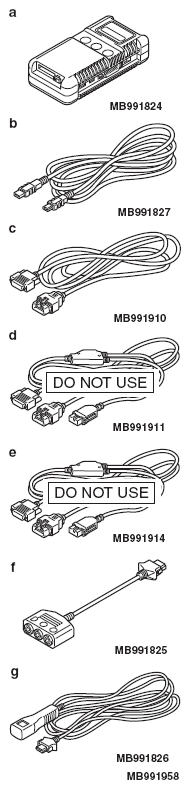

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub-assembly Vehicle communicatio n interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle. DTC, data list and actuator test check.
