INSPECTION PROCEDURE 1: Malfunction of the heater controller assembly (A/C-ECU) Power Supply System: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

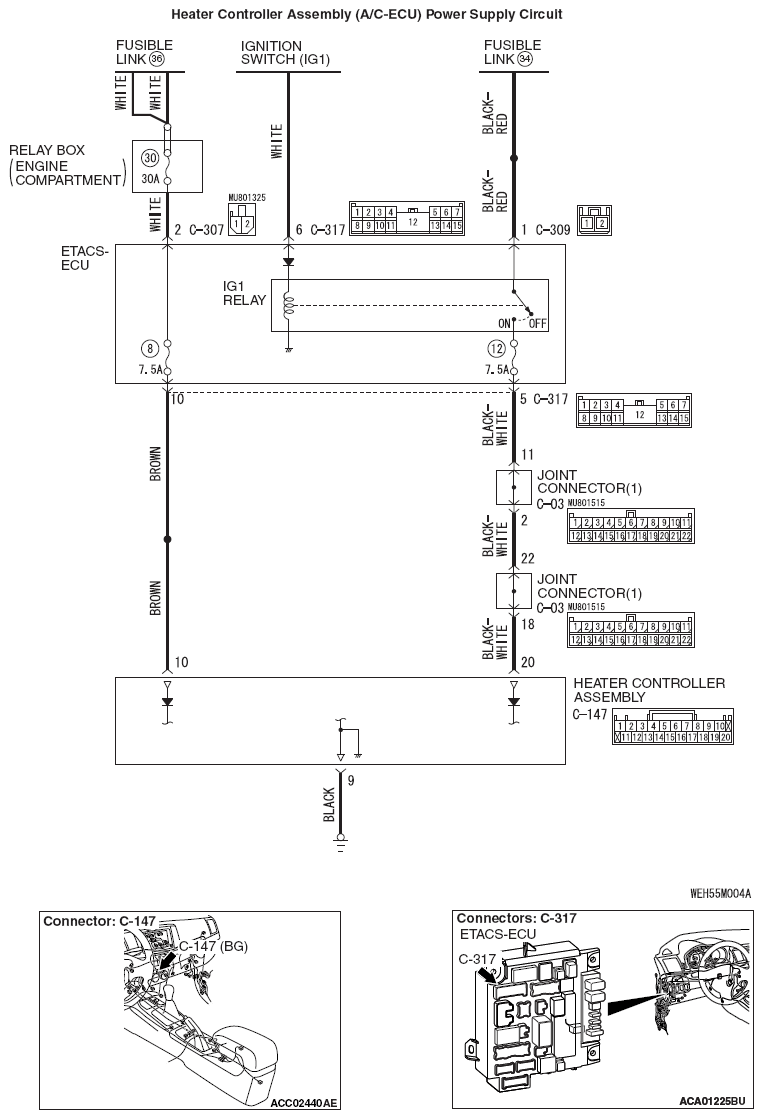

Fig 1: Heater Controller Assembly (A/C-ECU) Power Supply Circuit Diagram
G09631132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
