INSPECTION PROCEDURE 8: Air Outlet Vent cannot be Changed: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

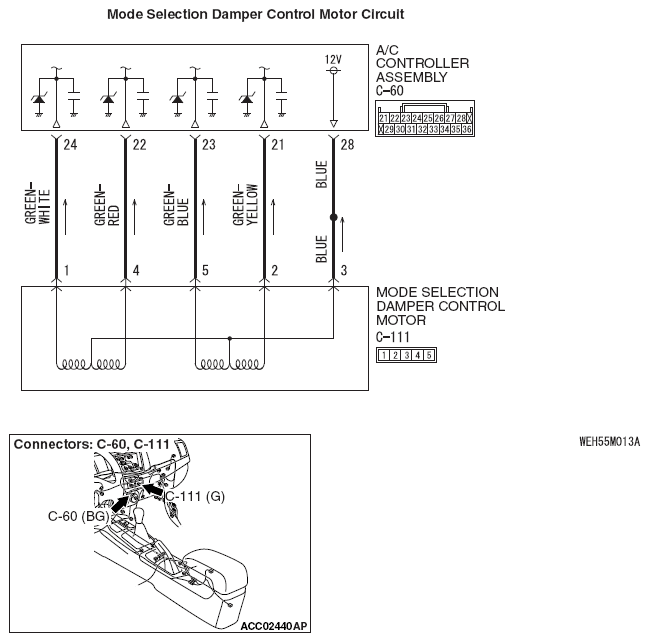

Fig 1: Mode Selection Damper Control Motor Circuit Diagram
G09631176Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
