DTC B1031, B1032: Air Thermo Sensor System (Vehicles with A/C): Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

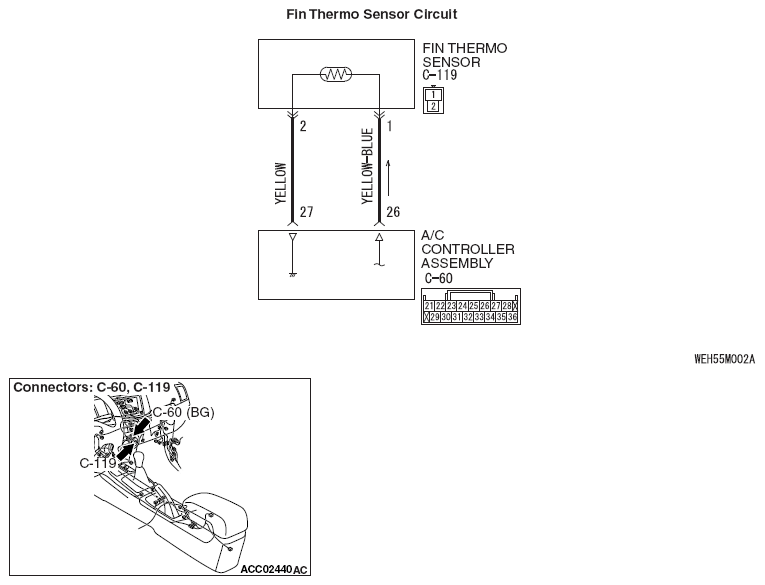

Fig 1: Fin Thermo Sensor Circuit Diagram
G09631114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
