Removal And Installation: Notes

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING (EXCEPT RALLIART) , or DRIVER'S AIR BAG MODULE AND CLOCK SPRING (RALLIART) .
When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle (Refer to ON-VEHICLE SERVICE ).

Pre-removal and Post-installation Operations

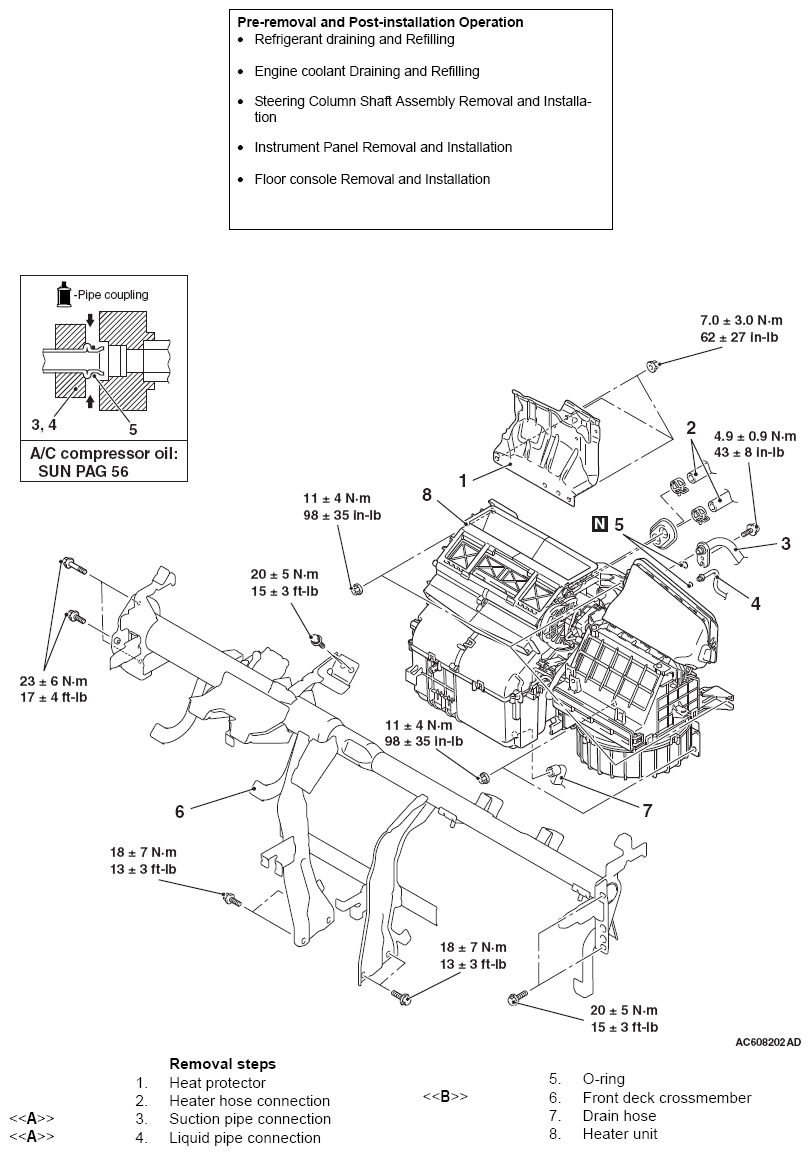

Fig 1: Removing/Installing Heater Unit And Blower Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
