Condenser Assembly Disconnection

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the condenser while pressing the claw B.
  2. Lift the condenser while pressing the claw A and remove it.

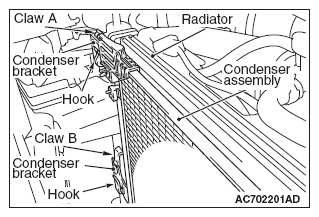

    Fig 1: Identifying Condenser Assembly And Claw
    G09631230Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
