Schematic Diagram

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

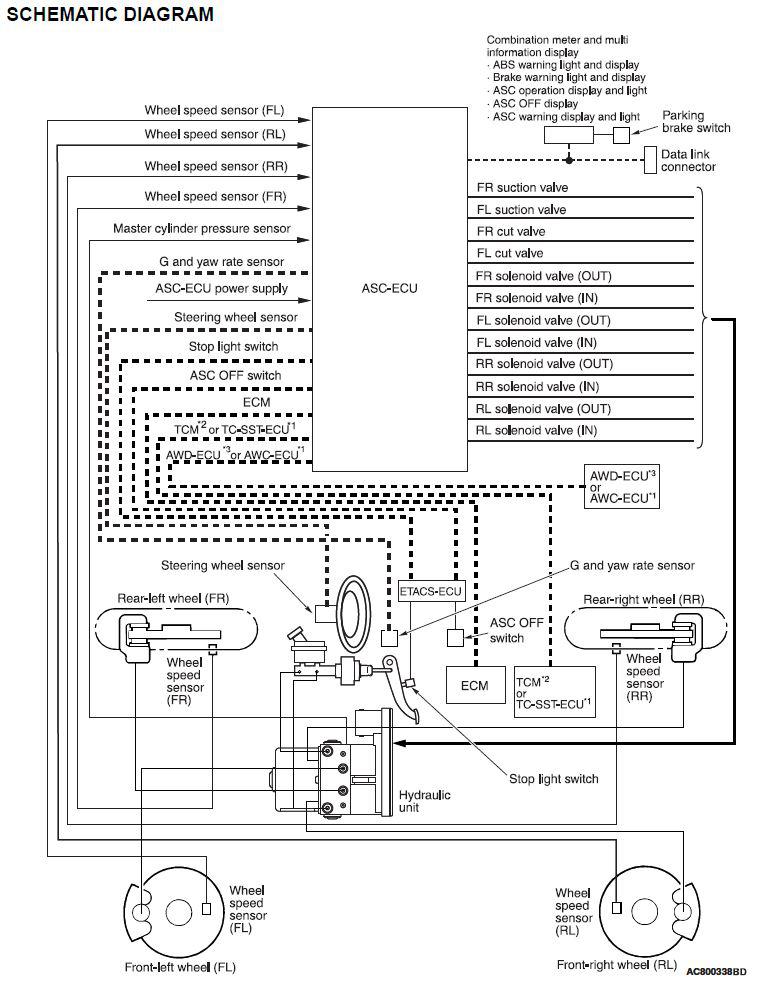

Fig 1: ASC System Schematic Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

Dashed lines indicate the CAN bus line.
^*1 : RALLIART
^*2 : CVT
^*3 : AWD (except RALLIART)
