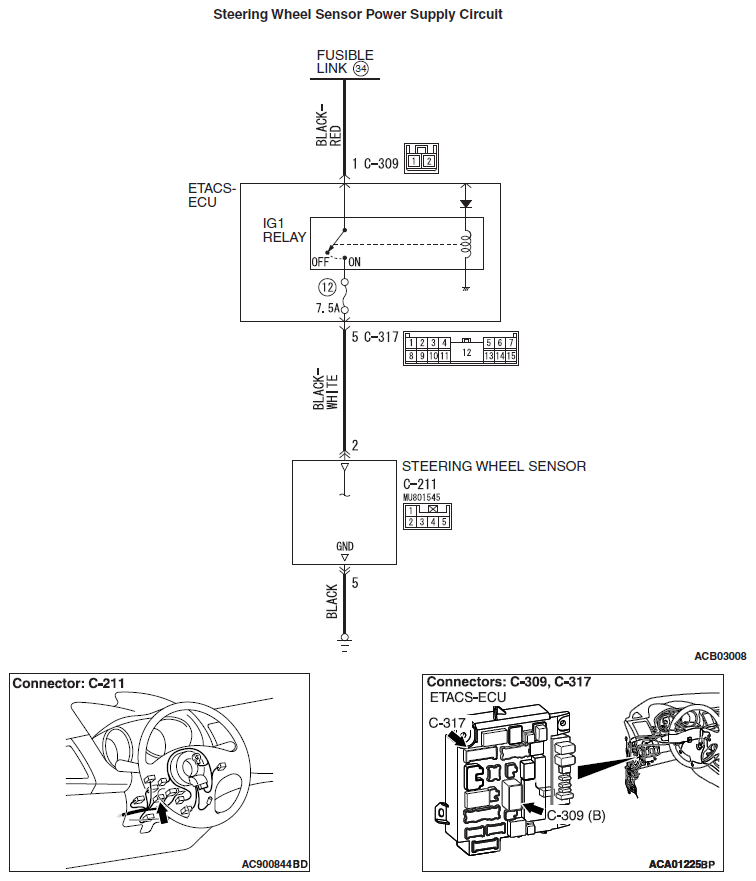

Inspection Procedure 14: Steering wheel sensor power supply circuit system: Notes
WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to CAN BUS LINE DIAGNOSTIC FLOW ).
- Whenever ECU is replaced, ensure that the CAN bus lines are normal.
- When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ).
