(Sport Mode (Vehicles With Sport Mode))

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

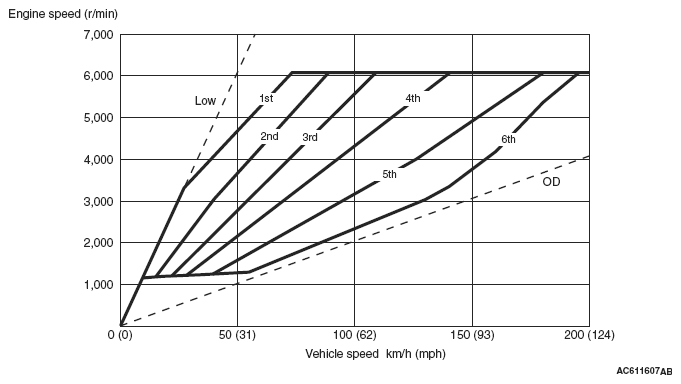

Fig 1: Engine Versus Vehicle Speed Graph Sport Mode (Vehicles With Sport Mode)
G05375732Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the sport mode is switched ON with the selector lever or paddle shift, the fixed shifting line is determined. The upshift/downshift operation enables to shift in steps according to the predetermined shifting line, providing M/T-like shifting. The 6-speed transaxle which is suitable for sporty driving is adopted.
