Floor Jack

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Never place a support at any point other than the specified one, or that point will be deformed.
  • For lifting, put rubber or similar material between the side sill and rigid rack, otherwise the side sill area will be damaged.

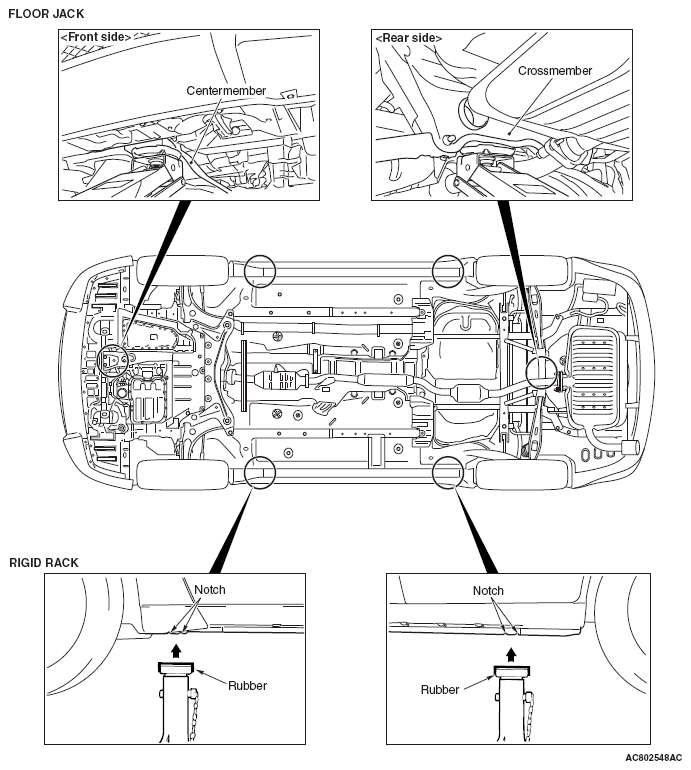

Fig 1: Identifying Floor Jack Points
G05901789Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
