Inspection Procedure 1: Power supply circuit check: Notes

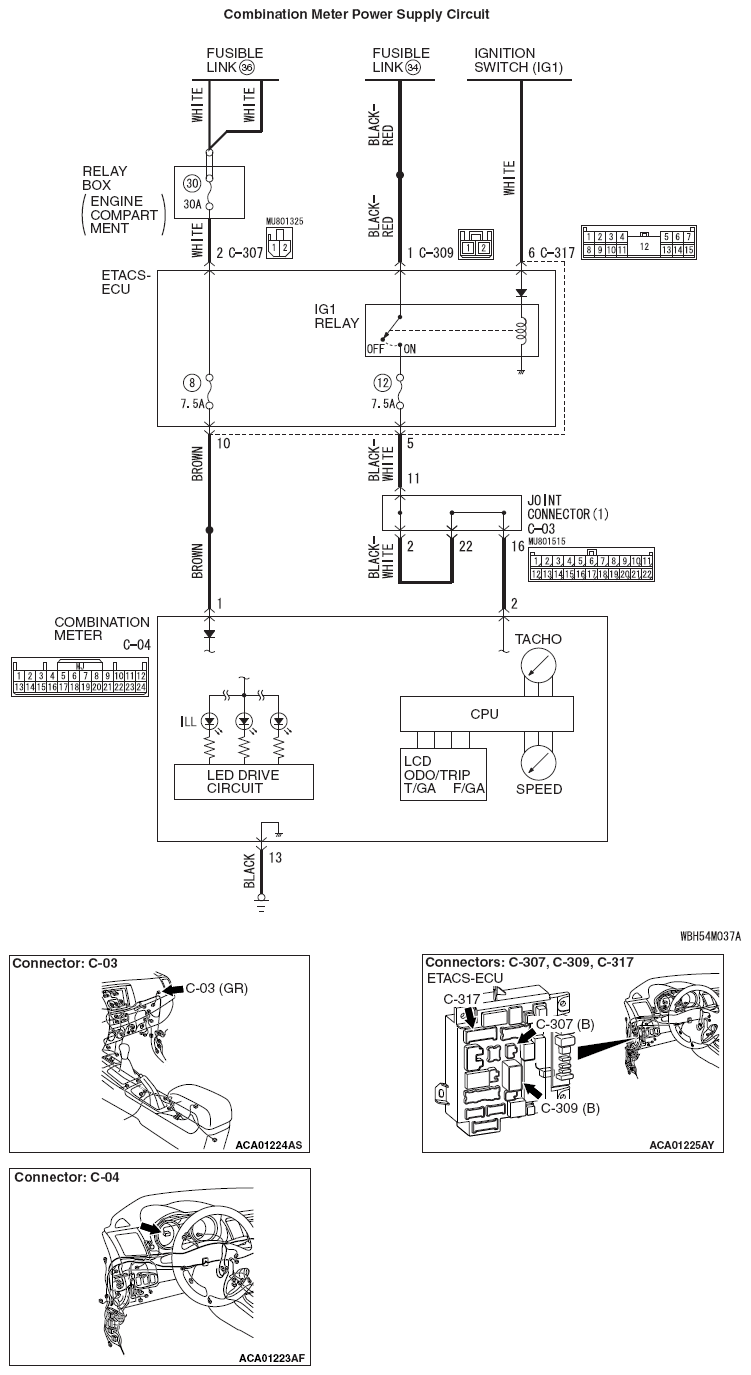

Fig 1: Combination Meter Power Supply Circuit Diagram

G09629860

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
