Nominal Resistance Of The Fuel Level Sensor

  1. Remove the fuel pump module (Refer to FUEL TANK < 2.0L ENGINE NON-TURBO, 2.4L ENGINE (FWD) > < 2.0 L engine, 2.4 L engine > or < RALLIART > ).
  2. When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
    RESISTANCE SPECIFICATION (FWD)

    Float position Gauge resistance value (ohms)
    Stopper position "F" 13.0 ± 1.0
    Stopper position "E" 120.0 ± 1.0
    RESISTANCE SPECIFICATION AWD

    Float position Gauge resistance value (ohms)
    Main Sub
    Stopper position "F" 6.5 ± 1.0 6.5 ± 1.0
    Stopper position "E" 41.9 ± 1.0 78.1 ± 1.0
  3. When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

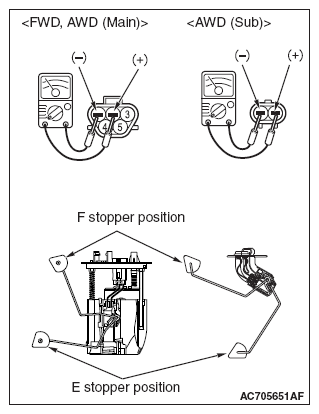

    Fig 1: Inspecting Resistance Between Fuel Level Sensor Terminal And Ground Terminal
    G09629949Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
