Parking Brake Switch Check
CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
- Remove the rear floor console assembly (Refer to REAR FLOOR CONSOLE ).

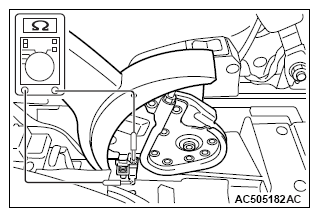

- Check the continuity between the parking brake switch terminal and the switch mounting bolt.
Check condition Normal condition When parking brake lever is pulled. Continuity exists (2 Ω or less) When parking brake lever is released. No continuity
