Can Bus Diagnostics Table
CAUTION:
During diagnosis, a DTC associated with another system may be stored when the ignition switch is turned on with connector(s) disconnected. After completing the repair, confirm all systems for DTC(s). If DTC(s) are stored, erase them all.
This diagnosis applies only to the CAN bus lines. If a different system is defective, proceed to the applicable diagnosis information for each system. Observe the diagnostic procedure below only when the CAN bus line is defective.
| Scan tool screen (The ECUs that are not adopted are not displayed.) |
Diagnostics detail | References | |||||
|---|---|---|---|---|---|---|---|
| Comment | |||||||

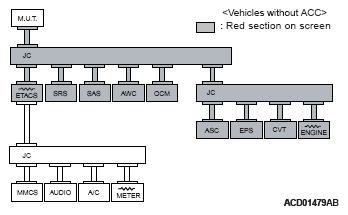

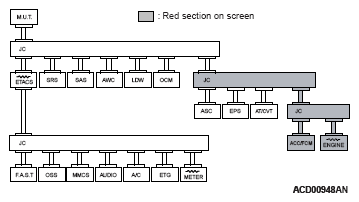

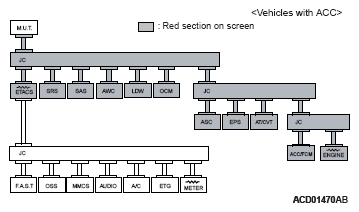

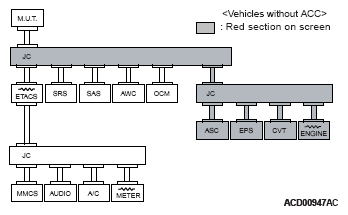

| Failure in red displayed area is estimated. | Diagnostic Item 1 Communication with no ECUs is possible (CAN-C). | DIAGNOSTIC ITEM 1: COMMUNICATION WITH NO ECUS IS POSSIBLE (CAN-C). | |||||
| - | - | Diagnostic Item 2(1) Diagnose shorts in the power supply to CAN-C. |
DIAGNOSTIC ITEM 2: DIAGNOSE SHORTS IN THE POWER SUPPLY TO CAN-C. | ||||
| - | - | Diagnostic Item 3(1) Diagnose shorts in the ground to CAN-C. |
DIAGNOSTIC ITEM 3: DIAGNOSE SHORTS IN THE GROUND TO CAN-C. | ||||
| - | - | Diagnostic Item 4(1) Diagnose shorts between CAN_H and L lines (CAN-C). |
DIAGNOSTIC ITEM 4: DIAGNOSE SHORTS BETWEEN CAN_H AND L LINES (CAN-C) | ||||

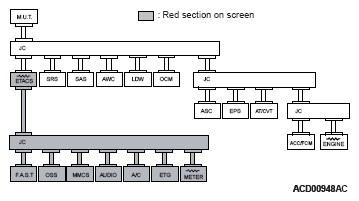

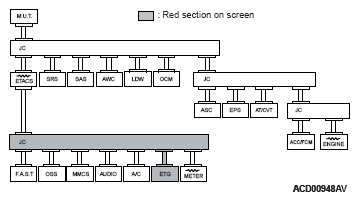

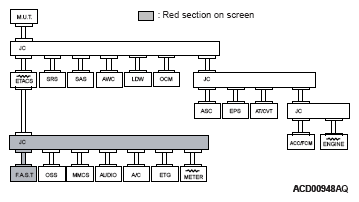

| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 5 Communication with no ECUs is possible (CAN-C-Mid). |
DIAGNOSTIC ITEM 5: COMMUNICATION WITH NO ECUS IS POSSIBLE (CAN-C-MID). | |||||
| - | - | Diagnostic Item 6(2) Diagnose shorts in the power supply to CAN-C-Mid. |
DIAGNOSTIC ITEM 6: DIAGNOSE SHORTS IN THE POWER SUPPLY TO CAN-C-MID. | ||||
| - | - | Diagnostic Item 7(2) Diagnose shorts in the ground to CAN-C-Mid. |
DIAGNOSTIC ITEM 7: DIAGNOSE SHORTS IN THE GROUND TO CAN-C-MID. | ||||
| - | - | Diagnostic Item 8(2) Diagnose shorts between CAN_H and L lines (CAN-C-Mid). |
DIAGNOSTIC ITEM 8: DIAGNOSE SHORTS BETWEEN CAN_H AND L LINES (CAN-C-MID). | ||||

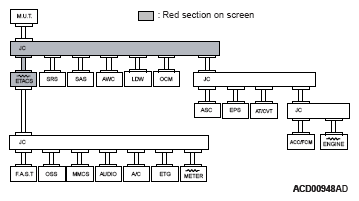

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 9 Diagnose when the scan tool cannot receive the data sent by ETACS-ECU. |
DIAGNOSTIC ITEM 9: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ETACS-ECU. | |||||

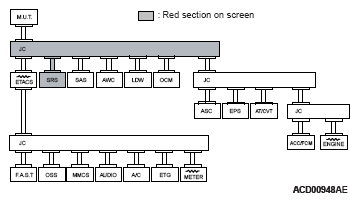

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 10 Diagnose when the scan tool cannot receive the data sent by SRS-ECU. |
DIAGNOSTIC ITEM 10: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY SRS-ECU | |||||

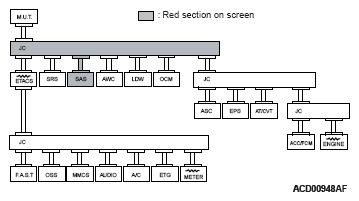

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 11 Diagnose when the scan tool cannot receive the data sent by steering wheel sensor. |
DIAGNOSTIC ITEM 11: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY STEERING WHEEL SENSOR. | |||||

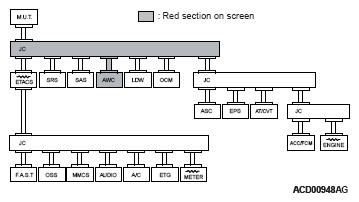

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 12 Diagnose when the scan tool cannot receive the data sent by AWD-ECU < AWD >. |
DIAGNOSTIC ITEM 12: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY AWD-ECU < AWD >. | |||||

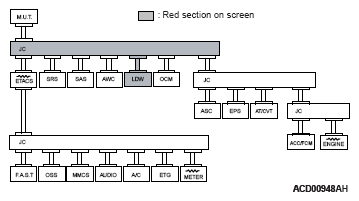

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 13 Diagnose when the scan tool cannot receive the data sent by LDW-ECU < Vehicles with LDW >. |
DIAGNOSTIC ITEM 13: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY LDW-ECU. < VEHICLES WITH LDW > | |||||

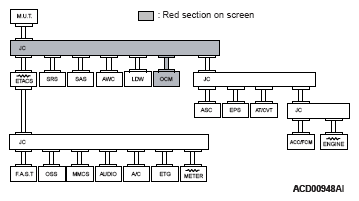

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 14 Diagnose when the scan tool cannot receive the data sent by occupant classification-ECU. |
DIAGNOSTIC ITEM 14: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY OCCUPANT CLASSIFICATION-ECU. | |||||
| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 15 Diagnose the lines between the joint connectors (CAN-3 and CAN1). |
DIAGNOSTIC ITEM 15: DIAGNOSE THE LINES BETWEEN THE JOINT CONNECTORS (CAN3 AND CAN1). | |||||

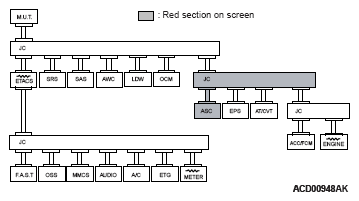

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 16 Diagnose when the scan tool cannot receive the data sent by ASC-ECU. |
DIAGNOSTIC ITEM 16: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ASC-ECU. | |||||

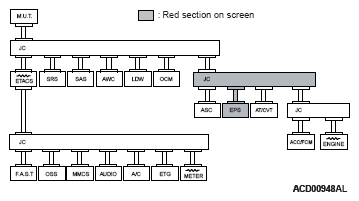

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 17 Diagnose when the scan tool cannot receive the data sent by EPS-ECU. |
DIAGNOSTIC ITEM 17: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY EPS-ECU. | |||||

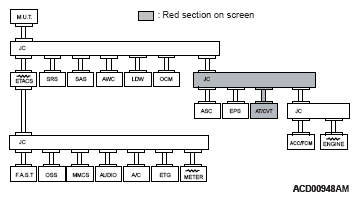

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 18 Diagnose when the scan tool cannot receive the data sent by transaxle control module (TCM). |
DIAGNOSTIC ITEM 18: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY TRANSAXLE CONTROL MODULE (TCM). | |||||
| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 19 Diagnose the lines between the joint connectors (CAN-1 and CAN2). |
DIAGNOSTIC ITEM 19: DIAGNOSE THE LINES BETWEEN THE JOINT CONNECTORS (CAN1 AND CAN2). | |||||

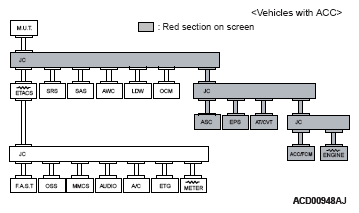

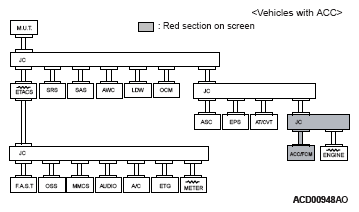

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 20 Diagnose when the scan tool cannot receive the data sent by ACC/FCM-ECU < Vehicles with ACC >. |
DIAGNOSTIC ITEM 20: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ACC/FCM-ECU. < VEHICLES WITH ACC > | |||||

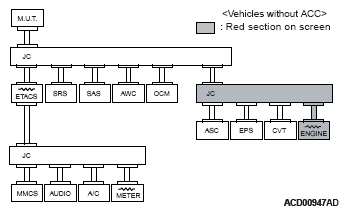

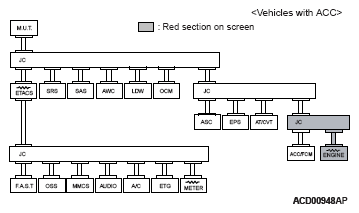

| CAN-C: Failure in red displayed area is estimated. | Diagnostic Item 21 Diagnose when the scan tool cannot receive the data sent by engine control module. |
DIAGNOSTIC ITEM 21: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY ENGINE CONTROL MODULE. | |||||
| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 22 Diagnose when the scan tool cannot receive the data sent by KOS-ECU. < Vehicles with KOS > |
DIAGNOSTIC ITEM 22: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY KOS-ECU. < VEHICLES WITH KOS > | |||||

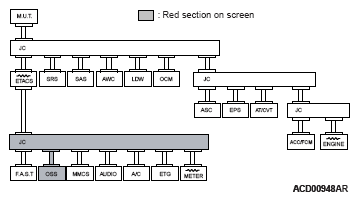

| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 23 Diagnose when the scan tool cannot receive the data sent by OSS-ECU. < Vehicles with OSS > |
DIAGNOSTIC ITEM 23: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY OSS-ECU. < VEHICLES WITH OSS > | |||||

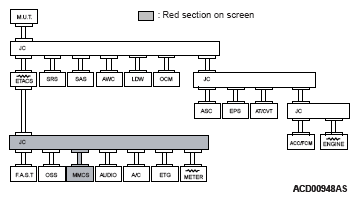

| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 24 Diagnose when the scan tool cannot receive the data sent by CAN box unit and multivision display < vehicles with MMCS >. |
DIAGNOSTIC ITEM 24: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY CAN BOX UNIT < VEHICLES WITH MMCS >. | |||||

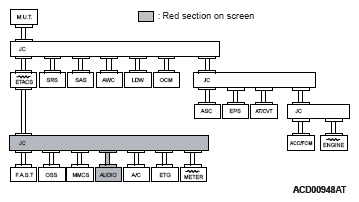

| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 25 Diagnose when the scan tool cannot receive the data sent by radio and CD player < vehicles with radio and CD player >. |
DIAGNOSTIC ITEM 25: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY RADIO AND CD PLAYER < VEHICLES WITH RADIO AND CD PLAYER >. | |||||

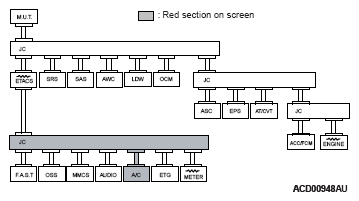

| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 26 Diagnose when the scan tool cannot receive the data sent by A/C-ECU. |
DIAGNOSTIC ITEM 26: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY A/C-ECU. | |||||
| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 27 Diagnose when the scan tool cannot receive the data sent by power liftgate control unit < vehicles with power liftgate >. |
DIAGNOSTIC ITEM 27: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY POWER LIFTGATE CONTROL UNIT < VEHICLES WITH POWER LIFTGATE >. | |||||

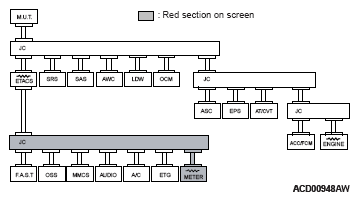

| CAN-C-Mid: Failure in red displayed area is estimated. | Diagnostic Item 28 Diagnose when the scan tool cannot receive the data sent by combination meter. |
DIAGNOSTIC ITEM 28: DIAGNOSE WHEN THE SCAN TOOL CANNOT RECEIVE THE DATA SENT BY COMBINATION METER. | |||||
|
