Special Tools

Tool number and name	Supersession	Application
MB990784 Ornament remover	General service tool	Removal of cover.
MB990803 Steering wheel puller	General service tool	Steering wheel removal

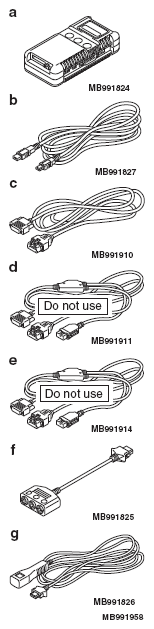

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 Scan tool (M.U.T.-III sub assembly) Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Checking diagnostic trouble code
MB991865 Dummy resistor		SRS air bag and seat belt pre-tensioner circuit check
MB991866 Resistor harness		Driver's and passenger's (front) air bag and side-air bag circuit check
MB991884 Resistor harness		Curtain air bag and seat belt pre-tensioner circuit check
MB991885 Adapter harness		Deployment of Knee air bag, curtain air bag and seat belt pre-tensioner inside or outside the vehicle
MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adaptor Probe	General service tools	Checking the continuity and measuring the voltage at the SRS-ECU harness connector
MB992102 Air bag inflation adapter harness		Deployment of driver's and passenger's (front) air bag module inside or outside the vehicle
MB992006 Extra fine probe	General service tool	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
