Seat Belt Buckle Switch Continuity Check

If there is no continuity, replace the seat belt.

Item	Tester connection	Specified condition
Fastened seat belt	1 - 2	Open circuit
Unfastened seat belt	1 - 2	Continuity (Less than 2 Ω)

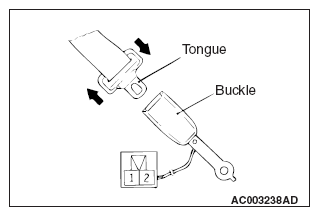

Fig 1: Identifying Tongue, Buckle And Seat Belt Buckle Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
