Seat Belt Reminder Connector Check (Passenger's Side)

Item	Tester connection	Specified condition
Fastened seat belt	Seat belt switch connector (terminal No. 2) - Seat belt reminder connector (terminal No. 2)	Open circuit
Unfastened seat belt		Continuity exists (Less than 2 Ω)

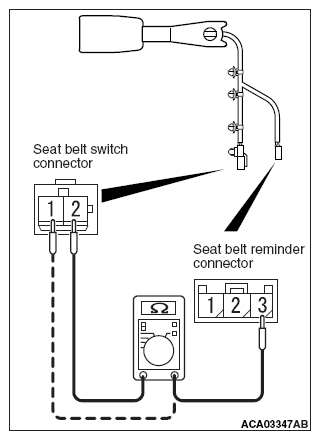

Fig 1: Checking Continuity Between Seat Belt Switch And Reminder Connector Terminals (Passenger Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Put a weight of 15 kg or more on the cushion before the continuity check.
