Seat Belt Buckle Switch Continuity Check (Driver's Side)

Item	Tester connection	Specified condition
Fastened seat belt	1 - 2	Open circuit
Unfastened seat belt	1 - 2	Continuity exists (2Ω or less)

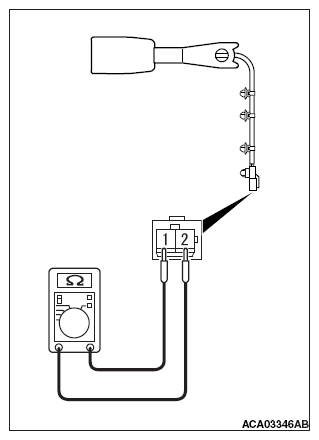

Fig 1: Checking Continuity Between Seat Belt Buckle Switch Connector Terminals (Driver Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
