Seat Cushion Heater Check

Measure the resistance between terminals.

Standard value: At room temperature 20C °(68°F)

Tester connection Specified condition
1 - 2 7 Ω

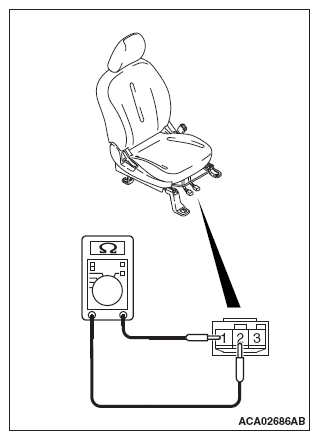

Fig 1: Measuring Resistance Between Seat Cushion Heater Terminals
G08303448Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
