< AWD >

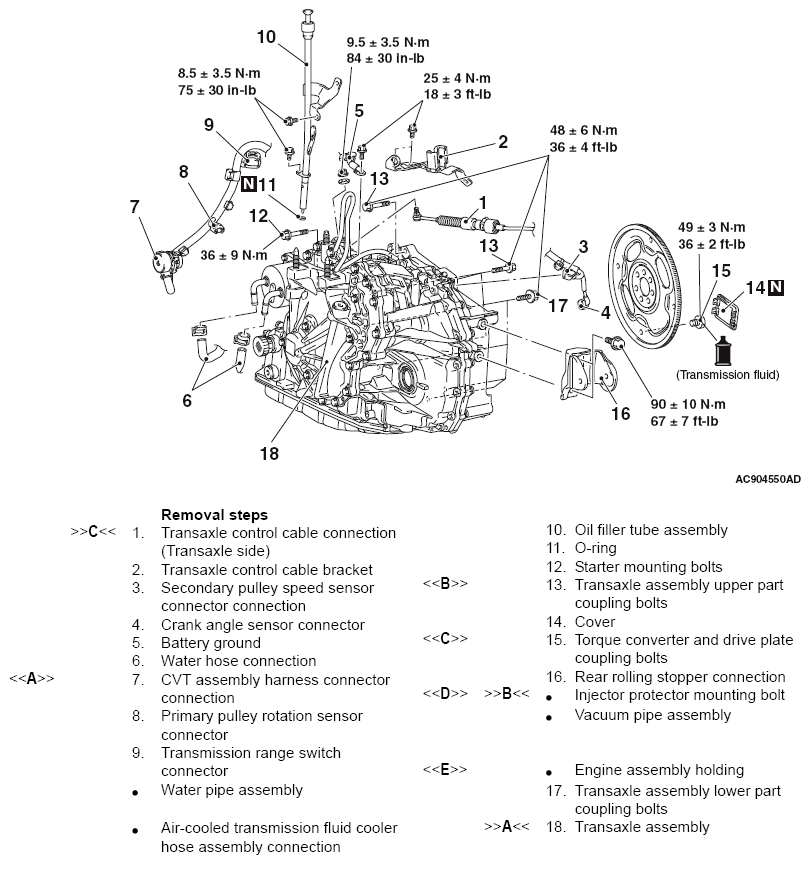

Fig 1: Exploded View Of Transaxle - AWD

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991527: Hanger
• MB991895: Engine Hanger
• MB991928: Engine Hanger
• Joint x 2 (50) (MB991929)
• Joint x 2 (90) (MB991930)
• Foot x 2 (standard) (MB991932)
• Foot x 2 (short) (MB991933)
• MB992201: Engine hanger plate
