Special Tools

WARNING: This page is about a different variant/trim than selected.

Tool number and name	Supersession	Application

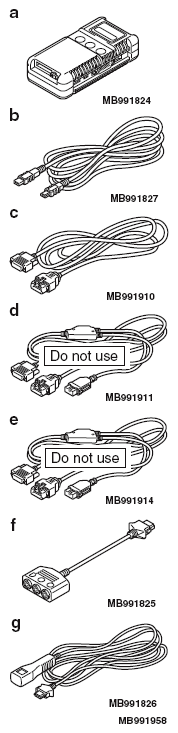

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Checking diagnostic trouble codes
MB992006 Extra fine probe	-	Making voltage and resistance measurement during troubleshooting
MD998330 (Includes MD998331) Oil pressure gauge (3.0 MPa, 427 psi)	MD998330-01	Measurement of hydraulic pressure
MB992127 Joint	-	Measurement of hydraulic pressure
MB995062 Flushing tool	MLR-6906-C or Equivalent	Flushing cooler and tube
MB991928 Engine hanger MB991929 Joint (50) x2 MB991930 Joint (90) x2 MB991931 Joint (140) x2 MB991932 Foot (standard) x4 MB991933 Foot (short) x2 MB991934 Chain and hook assembly	Tool not available	When the engine hanger is used: Supporting the engine assembly during removal and installation of the transaxle assembly
MB991895 Engine hanger	Tool not available
MB992201 Engine hanger plate	-
MB991527 Engine hanger	-
