Transmission Range Switch And Control Cable Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Move the selector lever to the N range.
  2. Loosen the adjusting nut so that the manual control lever moves freely.
  3. Move the manual control lever to Neutral position.
  4. Align the hole at the end of the manual control lever and the hole in the transmission range switch body flange (section A - A).
    NOTE: Insert a ø5 bar into the aligned holes in the transmission range switch body flange and on the tip of the manual control lever to position the transmission range switch body.
    Fig 1: Section View Of Transmission Range Switch
    G09669718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Use the adjusting nut to tighten the transaxle control cable to the specified torque.

    Tightening torque: 9.5 ± 3.5 N.m (84 ± 30 in-lb)

  6. Make sure that the selector lever is in the N range.
  7. Make sure that the transaxle-side ranges that are corresponding to the transmission range operate and function without fail.

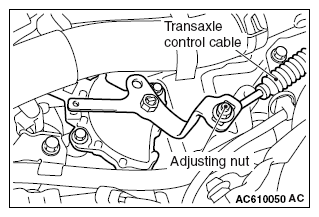

    Fig 2: Identifying Adjusting Nut And Transaxle Control Cable
    G09669719Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
