Transfer Oil Replacement < AWD >

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drain plug and gasket, and gasket to drain the transfer oil.
  2. Install the drain plug and new gasket, and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  3. Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.

    Brand name: Mitsubishi Motors Genuine super hypoid gear oil API classification GL-5 SAE 80

    Filling amount: 0.47 dm 3  (0.50 quarts)

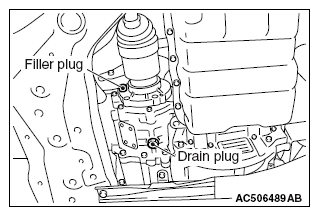

    Fig 1: Identifying Filler Plug And Drain Plugs
    G09669722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Install the filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

    Fig 2: Installing Filler Plug, Gasket, And Filler Plug Hole
    G09669723Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
