< Sport Mode >

WARNING: This page is about a different variant/trim than selected.

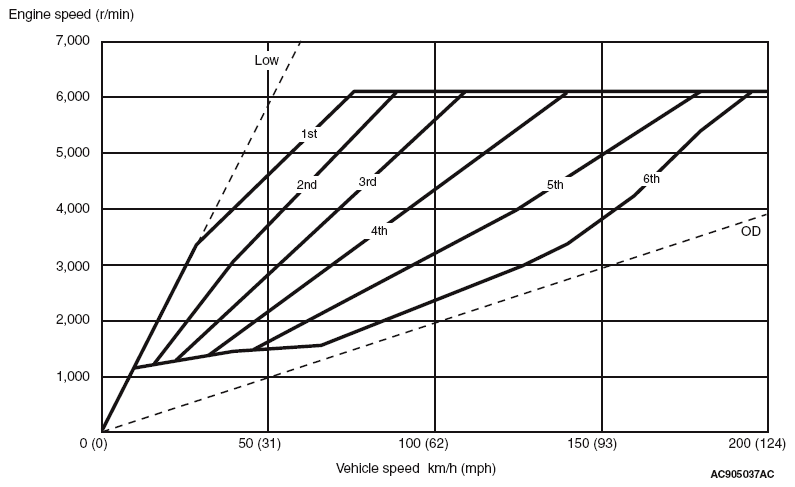

Fig 1: Ratio Pattern - Sport Mode
G09669631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the sport mode is switched ON with the selector lever or paddle shift, the fixed shifting line is determined. The upshift/downshift operation enables to shift in steps according to the predetermined shifting line, providing M/T-like shifting. The 6-speed transaxle which is suitable for sporty driving is adopted.
