Direct Control (Torque Converter Clutch Control)

WARNING: This page is about a different variant/trim than selected.

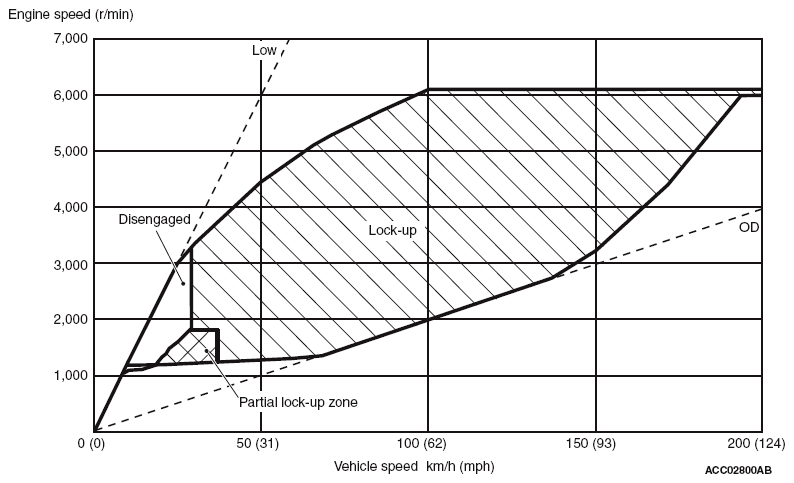

Fig 1: Ratio Pattern - Direct Control (Torque Converter Clutch Control)
G09669632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By carefully controlling the direct operating pressure depending on the driving conditions, the shock-free direct operation from low speed has been achieved.
