Inspection Procedure 6: Cannot be Changed with the Paddle Shift. < Vehicles with paddle shift >: Notes

WARNING: This page is about a different variant/trim than selected.

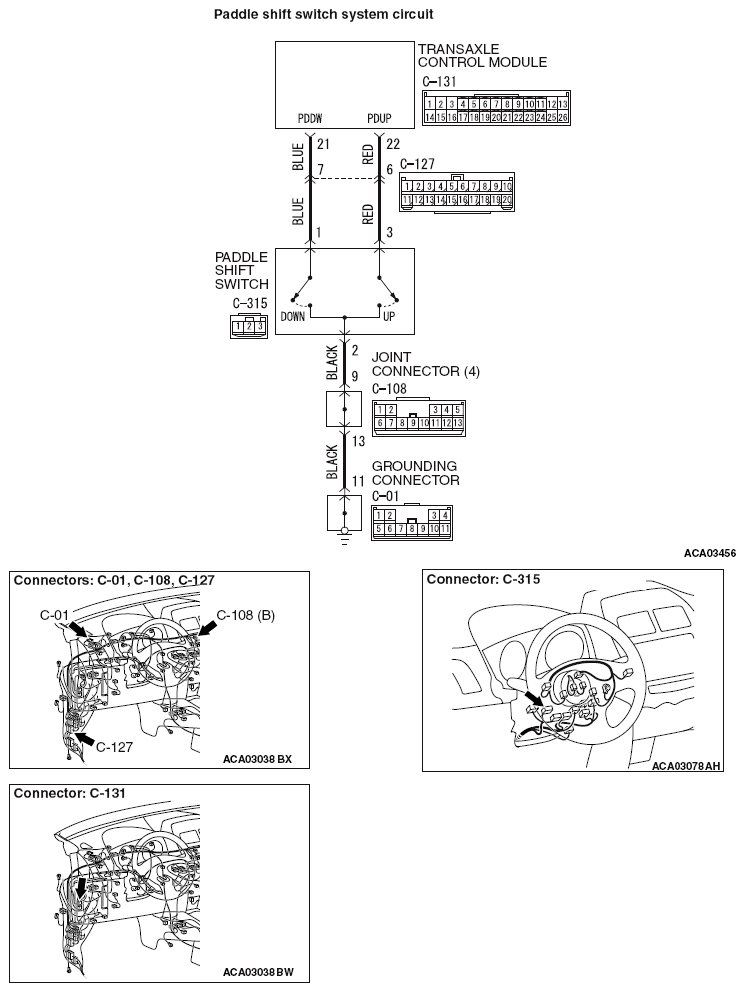

Fig 1: Paddle Shift Switch System Circuit Diagram
G09669692Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
