LOGIC FLOW CHARTS (Monitor Sequence - Output Open Circuit/Shorted-high)

WARNING: This page is about a different variant/trim than selected.

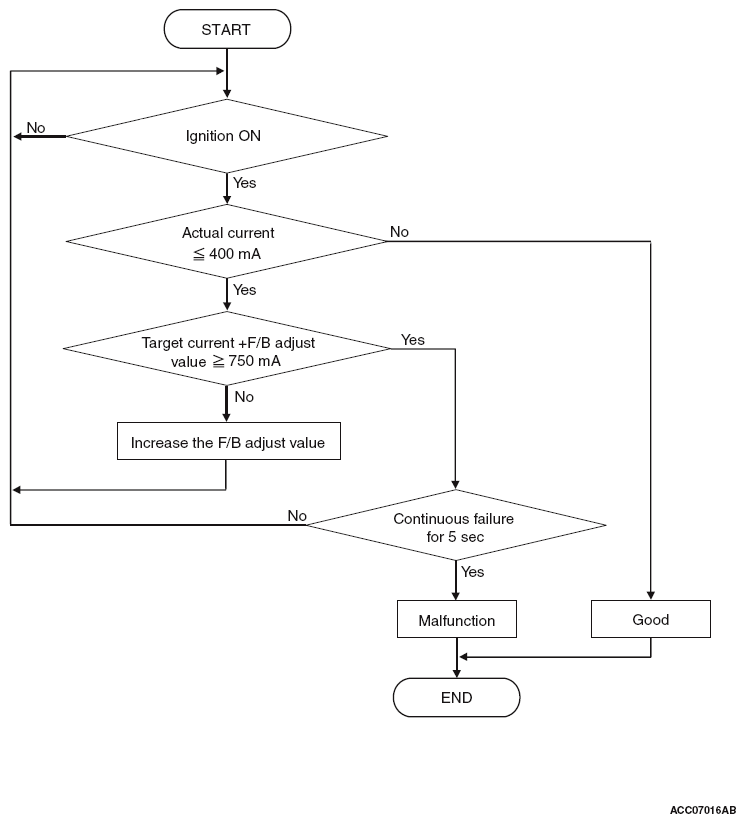

Fig 1: Logic Flow Charts (Monitor Sequence-Output Open Circuit/Shorted-High)
G09669669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
