DTC P0705: Malfunction of Transmission Range Switch: Notes

WARNING: This page is about a different variant/trim than selected.

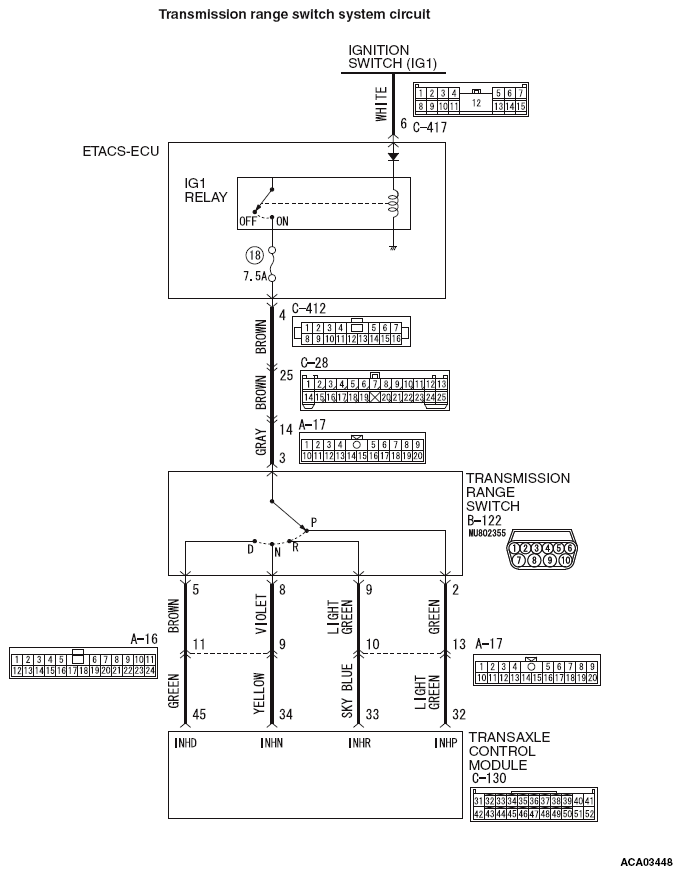

Fig 1: Transmission Range Switch System Circuit Diagram
G09669644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

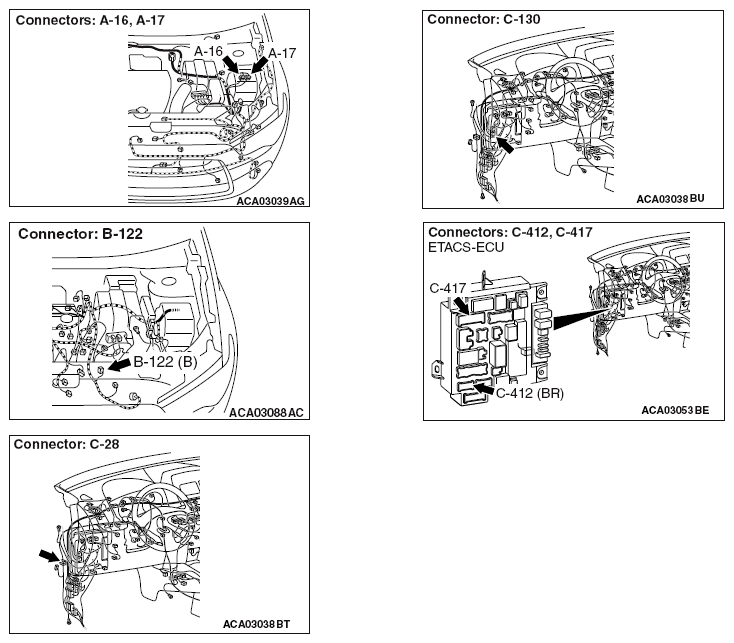

Fig 2: Locating Connectors Position
G09669645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
