How To Read Data List

WARNING: This page is about a different variant/trim than selected.

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.
Turn the ignition switch to the "ON" position.
Select "System select" from the start-up screen.
Select "From 06 MY."
Make sure vehicle information is correct.
Select "AT/CVT/A-MT/TC-SST."
Select "Data List."
Choose an appropriate item and select the "OK" button.

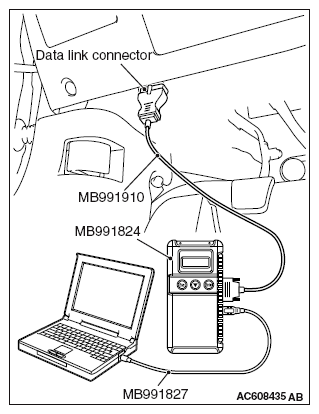

Fig 1: Connecting Data Link Connector And Special Tools (MB991910, MB991824 And MB991827)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
