Inspection Procedure 1: The sunshade illumination does not illuminate: Notes

CAUTION: Whenever the ECU is replaced, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

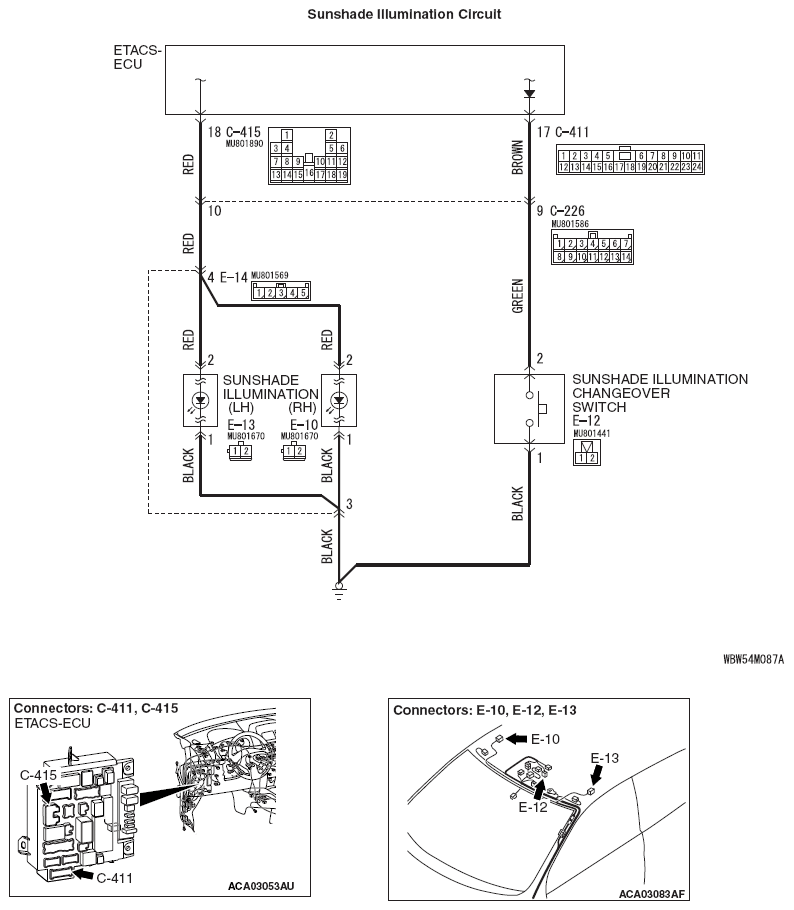

Fig 1: Sunshade Illumination - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
