Sunshade Illumination Changeover Switch Check

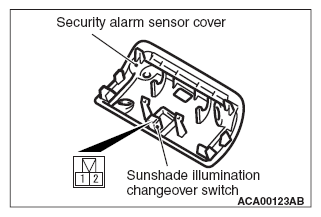

Fig 1: Identifying Sunshade Illumination Changeover Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check condition	Terminal number	Normal condition
OFF	1 - 2	No continuity
ON		Continuity exists (2 ohms or less)
