Description Of Construction And Operation: Sunshade-Ecu

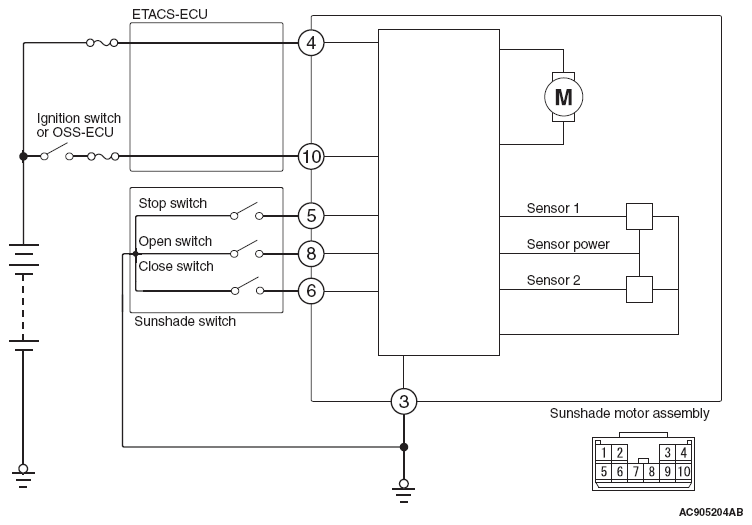

Fig 1: Sunshade (ECU) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The sunshade-ECU incorporates a microcomputer and controls motor operations with the sunshade switch signals, depending on various conditions.
