Removal And Installation

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS SERVICE PRECAUTIONS and SEAT BELTS WITH PRE-TENSIONER .

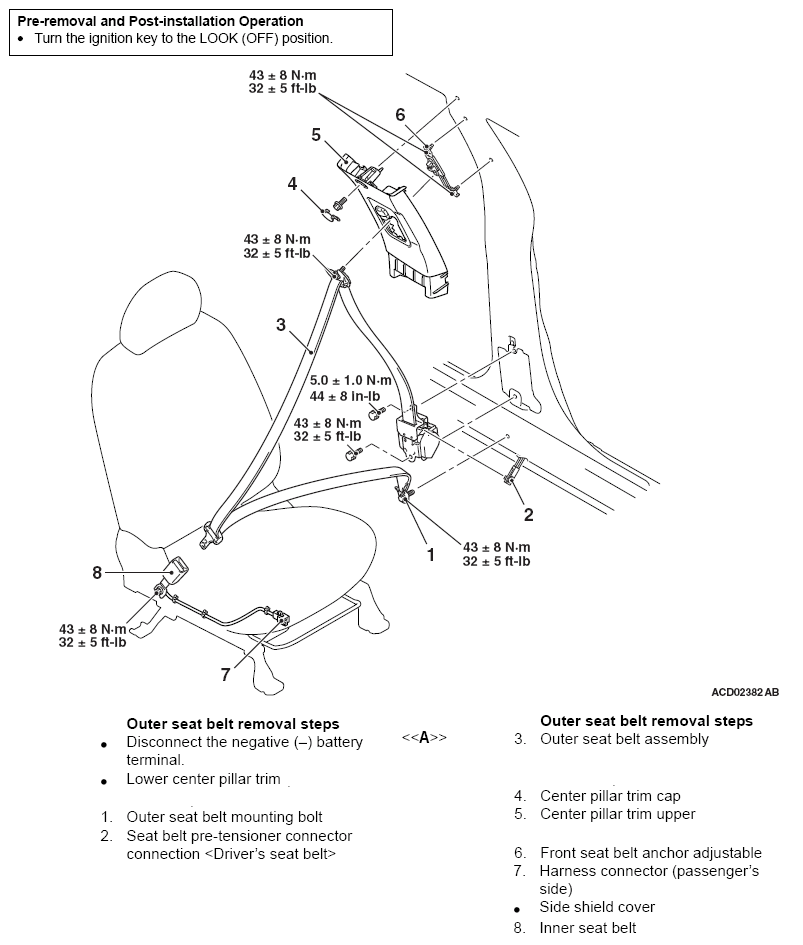

Fig 1: Removing/Installing Front Seat Belt Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
