Seatback Heater Inspection

Measure the resistance between the terminals.

STANDARD VALUE SPECIFICATION

Terminal number	Standard value
1 - 2	5.11 - 6.23 Ω

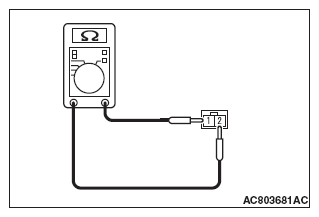

Fig 1: Measuring Resistance Between Terminals Seatback Heater Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
