Seat Cushion Heater Inspection
Measure the resistance between terminals.

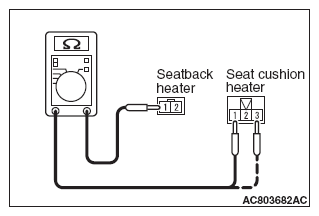

Fig 1: Measuring Resistance Between Terminals Seat Cushion Heater Terminal No.3 - Seatback Heater Terminal No.1
STANDARD VALUE SPECIFICATION
| Tester connection | Specified condition |
|---|---|
| Seat cushion heater terminal No.1 - seatback heater terminal No.1 | 0.198 - 0.242 Ω |
| Seat cushion heater terminal No.3 - seatback heater terminal No.1 | 4.13 - 5.03 Ω < Thermostat: ON > |
| 3.93 - 4.79 Ω < Thermostat: OFF > |
