Heated Seat Relay Continuity Check

Battery voltage Tester connection Specified condition
Not applied 3 - 4 Open circuit
  • Connect terminal 2 to the positive battery terminal
  • Connect terminal 1 to the negative battery terminal
 3 - 4 Continuity exists (2Ω or less)

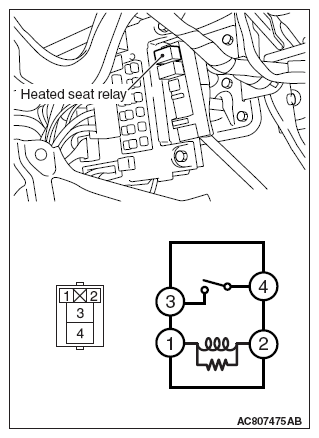

Fig 1: Identifying Heated Seat Relay
G09671236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
