<< A >> Wiring Harness Connectors Disconnection

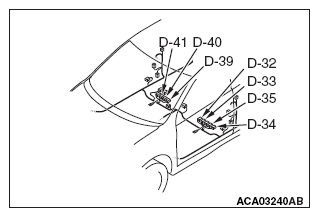

Disconnect the following wiring harness connectors:
| Connector number | Connector name |
|---|---|
| D-32 (2 - yellow) | Side-airbag module (squib) (LH) < Vehicles with side-airbag > |
| D-33 (2) | Seat belt switch (Driver's side) |
| D-34 (2) | Power seat assembly (Driver's side) |
| D-35 (4 - black) | Heated seat (LH) < Vehicles with heated seat > |
| D-39 (2 - yellow) | Side-airbag module (squib) (RH) < Vehicles with side-airbag > |
| D-40 (2 - black) | Seat belt switch (Passenger's side) |
| D-41 (4 - black) | Heated seat (RH) < Vehicles with heated seat > |
NOTE:

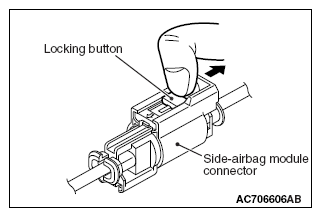

When disconnecting the side air bag module connectors of D-32 and D-39, unlock the connector by sliding the locking button to the direction of the arrow as shown in the figure, and then disconnect the connector.
