Removal And Installation

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and Side Airbag Module (s) P.52B-385.

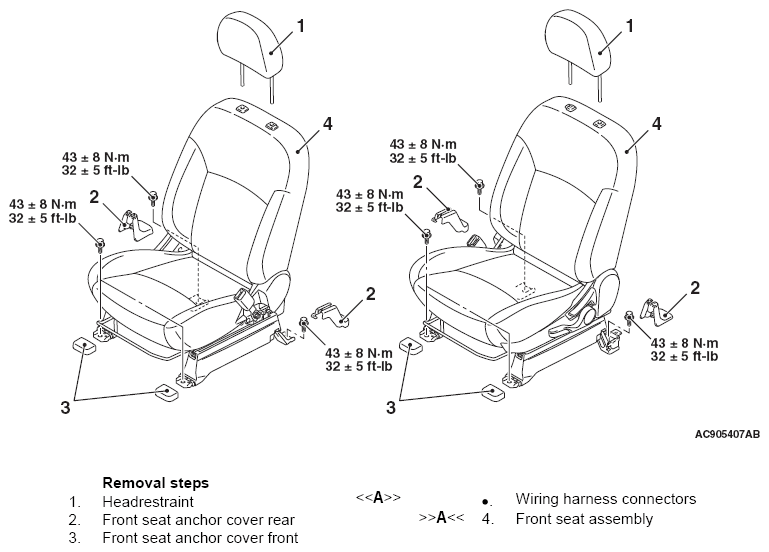

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specification
G09671229Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
