< Vehicles With Standard Seat >

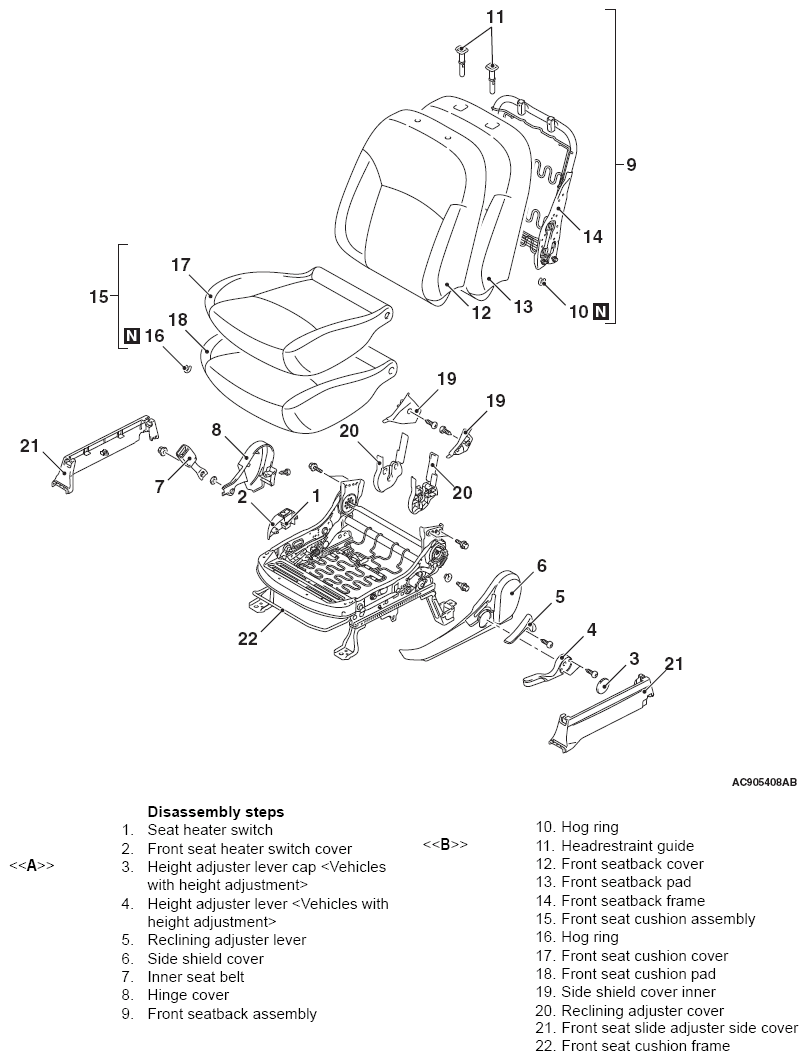

Fig 1: Disassembled View Of Seat Assembly (Vehicles With Standard Seat)

G09671237

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
