Nominal Resistance Of The Fuel Level Sensor
- Remove the fuel pump module (Refer to
ON-VEHICLE SERVICE
< Main >, P.13B-9 < Sub >).

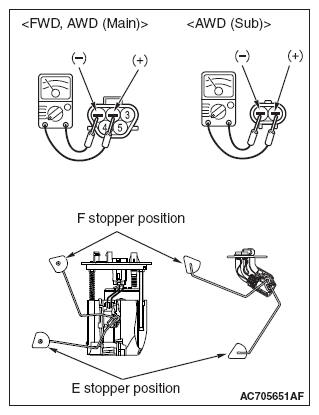

- When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
RESISTANCE REFERENCE
| Float position |
Gauge resistance value (ohms) |
| Stopper position "F" |
13.0 ± 1.0 |
| Stopper position "E" |
120.0 ± 1.0 |
RESISTANCE REFERENCE
| Float position |
Gauge resistance value (ohms) |
| Main |
Sub |
| Stopper position "F" |
6.5 ± 1.0 |
6.5 ± 1.0 |
| Stopper position "E" |
44.7 ± 1.0 |
75.3 ± 1.0 |
- When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
