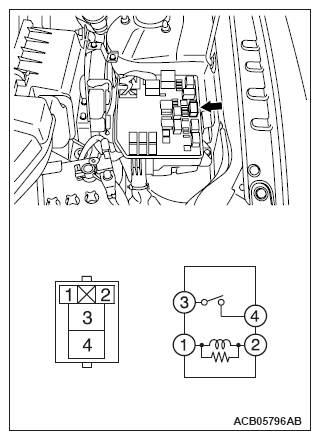

Horn Relay Check
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| Battery voltage |
Tester connection |
Specified condition |
| At no energization |
3 - 4 |
No continuity |
| With current supply [terminal 1 (+), terminal 2 (-)] |
Continuity exists (2 ohms or less) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
