Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

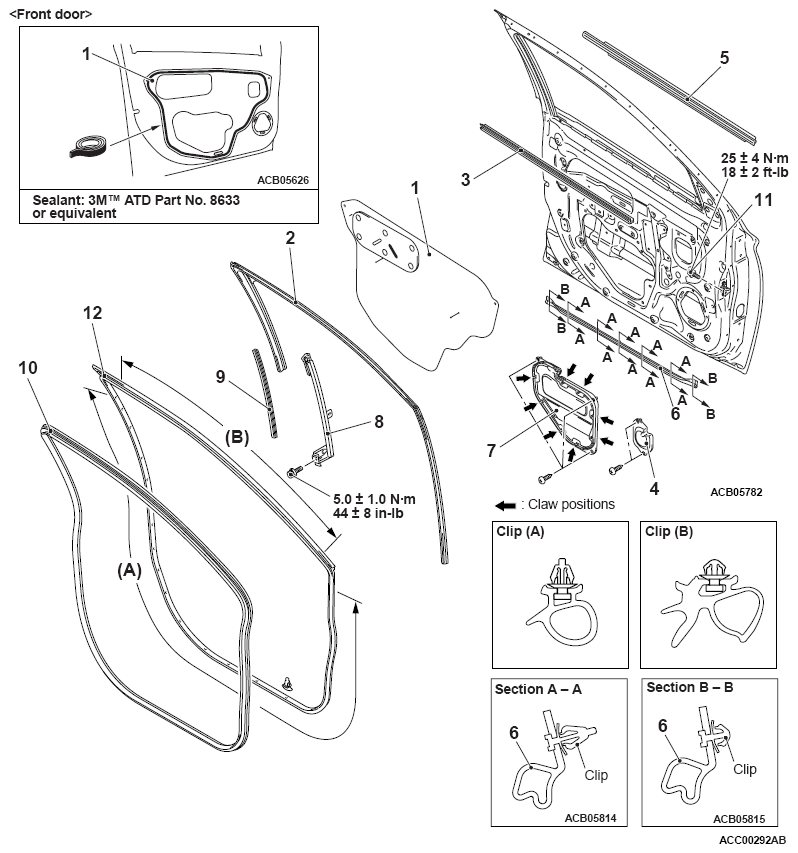

Fig 1: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip With Torque Specification (Front Door; 1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

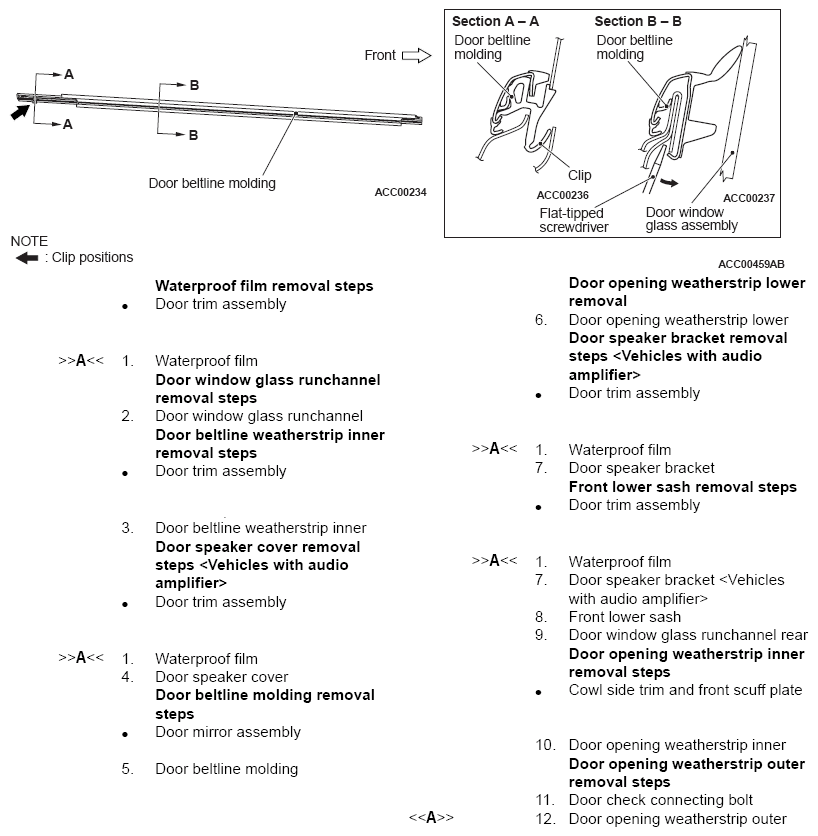

Fig 2: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip With Torque Specification (Front Door; 2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

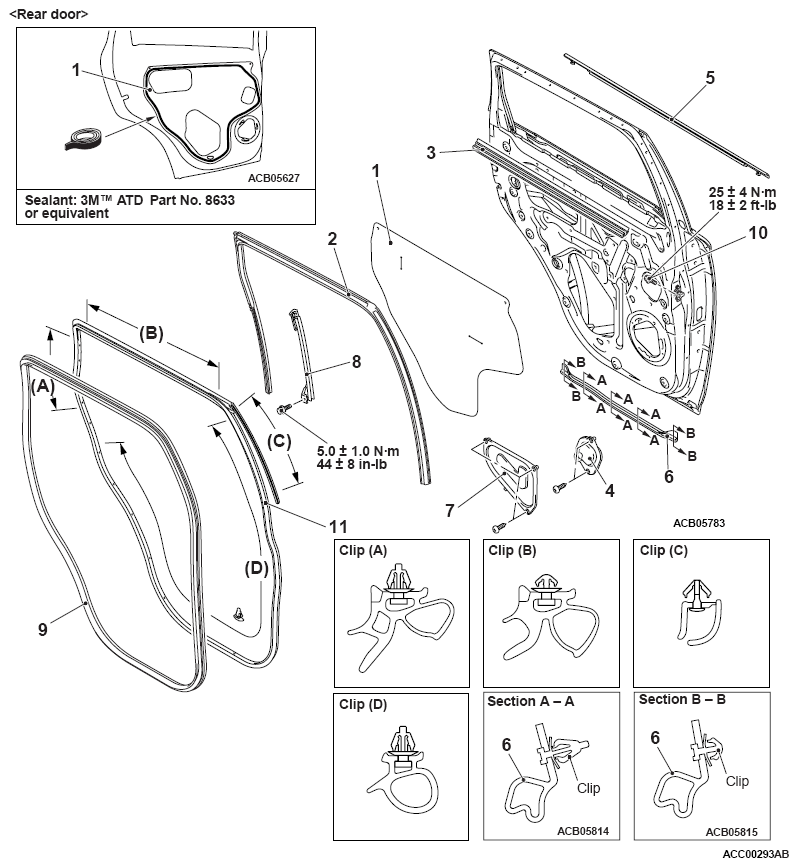

Fig 3: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip With Torque Specification (Rear Door; 1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

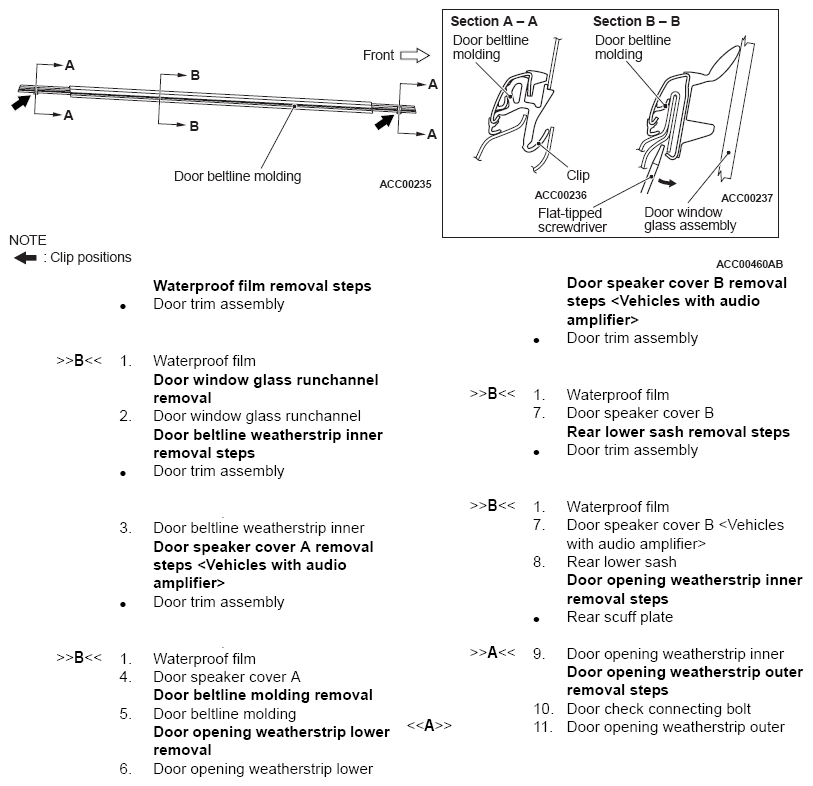

Fig 4: Removing/Installing Window Glass Runchannel And Door Opening Weatherstrip With Torque Specification (Rear Door; 2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
