Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

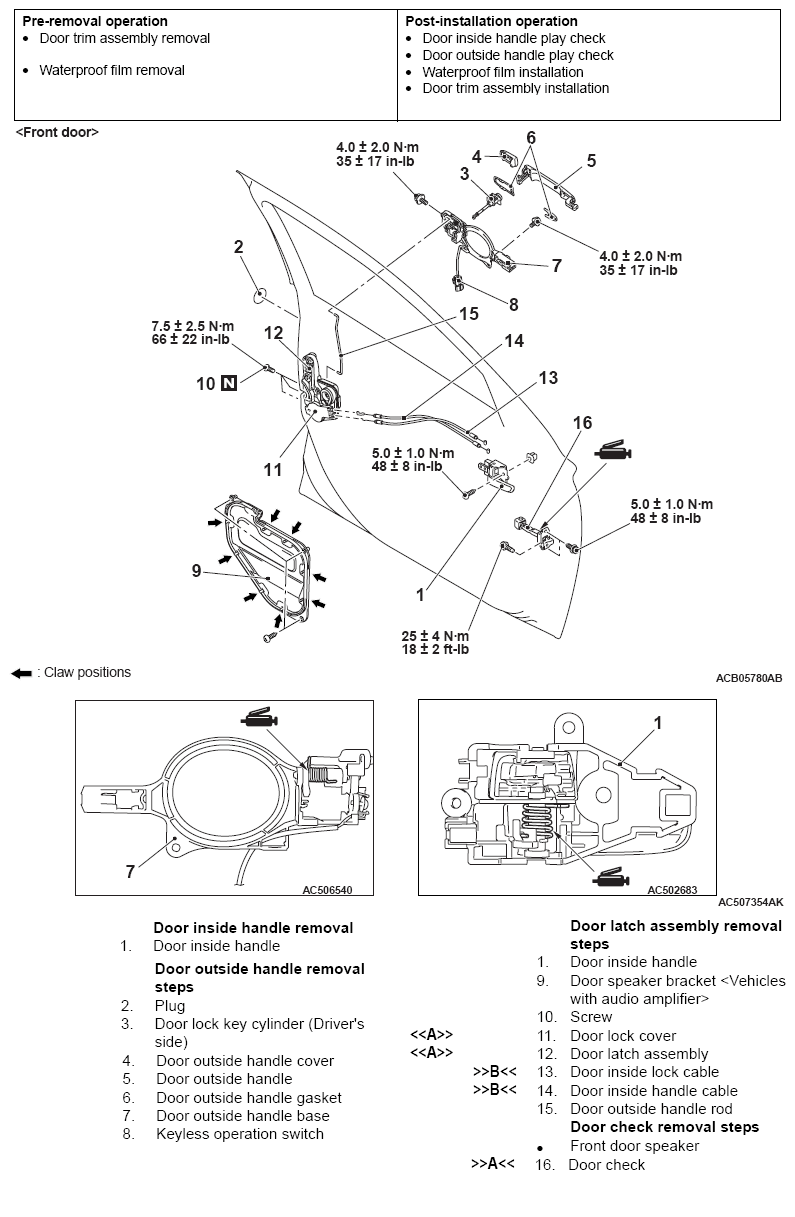

Fig 1: Removing/Installing Door Handle And Latch With Torque Specification (Front Door)
G09666165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

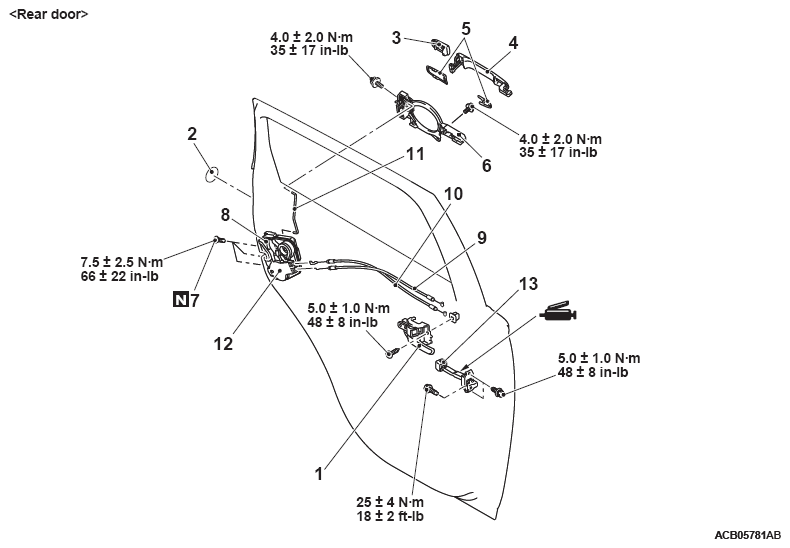

Fig 2: Removing/Installing Door Handle And Latch With Torque Specification (Rear Door)
G09666166Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

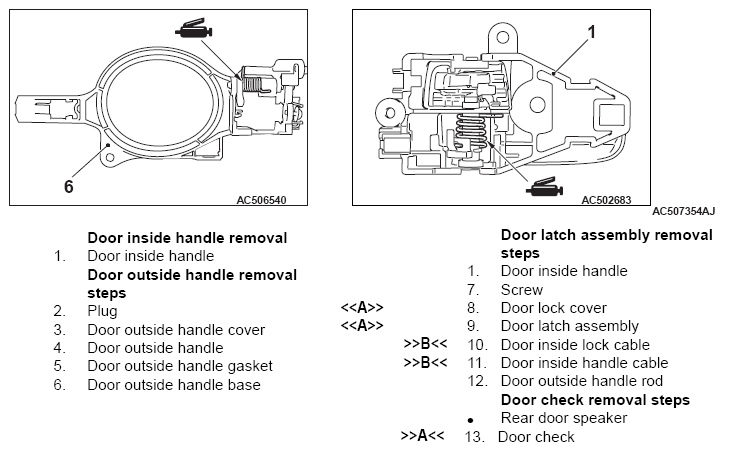

Fig 3: Identifying Door Lock Cover Removing Procedures
G09666167Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
